Linear Technology (Analog Devices, Inc.)

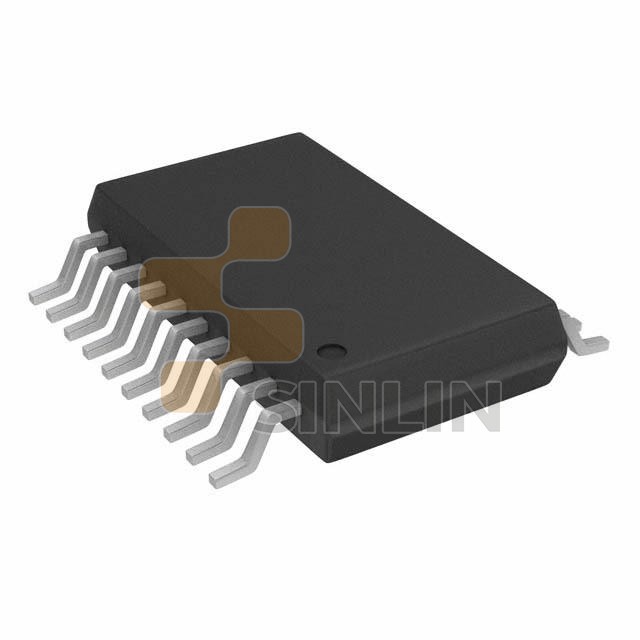

IC COMPARATOR PECL/LVPECL 20QSOP
RoHS Compliant
Can ship immediately
| QTY | UNIT PRICE |
| 1: | $7.67000 |
| 56: | $6.60427 |
| 112: | $5.73442 |
| Type | Description |
|---|---|
| Series: | - |
| Package: | Tube |
| Part Status: | Active |
| Type: | with Latch |
| Number of Elements: | 2 |
| Output Type: | Complementary, Differential, LVPECL, Open-Emitter, PECL |
| Voltage - Supply, Single/Dual (±): | 3.14V ~ 5.25V |
| Voltage - Input Offset (Max): | 10mV @ 3.3V |
| Current - Input Bias (Max): | 28µA @ 3.3V |
| Current - Output (Typ): | 55mA @ 3.3V |
| Current - Quiescent (Max): | 17mA |
| CMRR, PSRR (Typ): | 76dB CMRR, 75dB PSRR |
| Propagation Delay (Max): | 0.625ns |
| Hysteresis: | ± 0.5mV |
| Operating Temperature: | -40°C ~ 85°C |
| Package / Case: | 20-SSOP (0.154", 3.90mm Width) |
| Mounting Type: | Surface Mount |
| Supplier Device Package: | 20-QSOP |
